T820169004DH
SCR PHASE CTRL MOD 1600V 900AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More

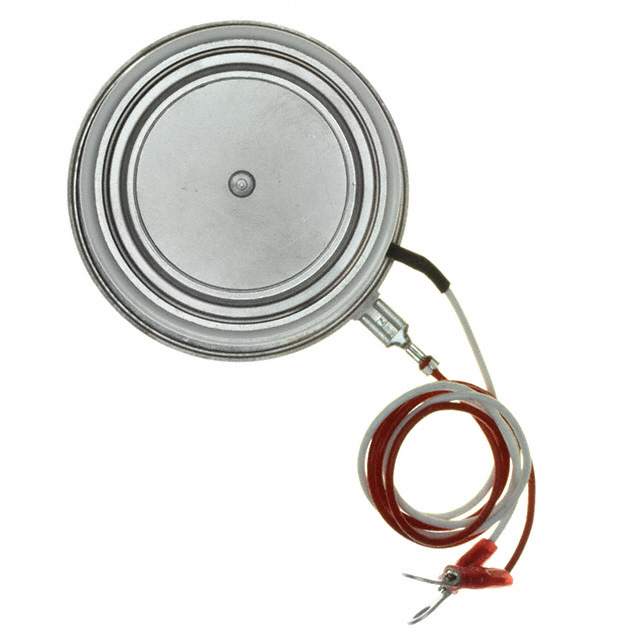

Powerex Inc. SCR Module T820169004DH is a single-element Silicon Controlled Rectifier (SCR) designed for phase control applications. This module features a high blocking voltage of 1.6 kV and a substantial on-state current capability, with an average on-state current (IT(AV)) of 900 A and an RMS on-state current (IT(RMS)) of 1410 A. It offers a high surge current rating, with Its(m) at 50/60Hz reaching 13.7 kA and 15 kA respectively. The gate trigger characteristics are specified with a maximum gate trigger current (IGT) of 150 mA and a maximum gate trigger voltage (VGT) of 3 V. This component is housed in a TO-200AC, B-PUK package suitable for clamp-on mounting. Operating within a temperature range of -40°C to 125°C (TJ), this module is utilized in demanding industrial applications such as motor control, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-200AC, B-PUK |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Single |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 13700A, 15000A |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 900 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 1410 A |
| Voltage - Off State | 1.6 kV |
