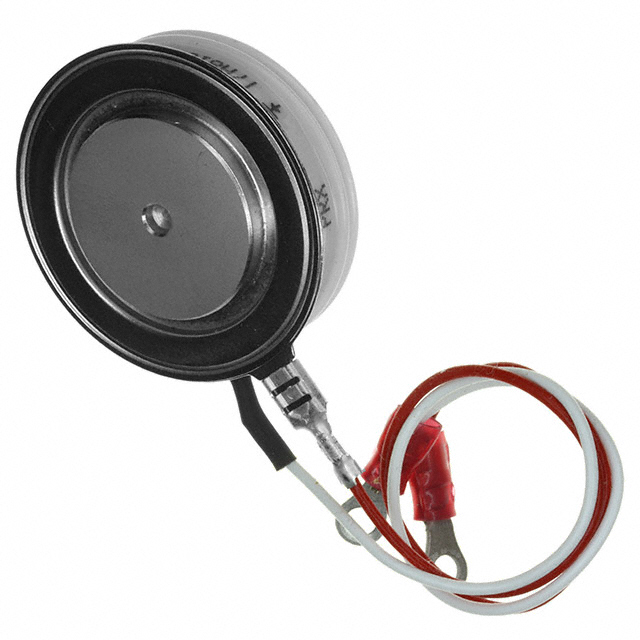

T7H8167504DN
SCR PHASE CTRL MOD 1600V 750AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
Powerex Inc. SCR Module T7H8167504DN provides robust phase control capability. This single SCR device features a maximum off-state voltage of 1.6 kV and a continuous on-state current rating of 750 A (average) with an RMS rating of 1180 A. Designed for high-power applications, it offers a high surge current capability of 9600 A at 50 Hz and 10500 A at 60 Hz. The module is configured as a single structure with a chassis mount for efficient thermal management. Key trigger parameters include a maximum gate trigger voltage (Vgt) of 3 V and a maximum gate trigger current (Igt) of 150 mA. Operating across a temperature range of -40°C to 125°C (TJ), the T7H8167504DN is suitable for demanding industrial power control, motor drives, and power supply applications. The component is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-200 Variation |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Single |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9600A, 10500A |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 750 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 1180 A |
| Voltage - Off State | 1.6 kV |
