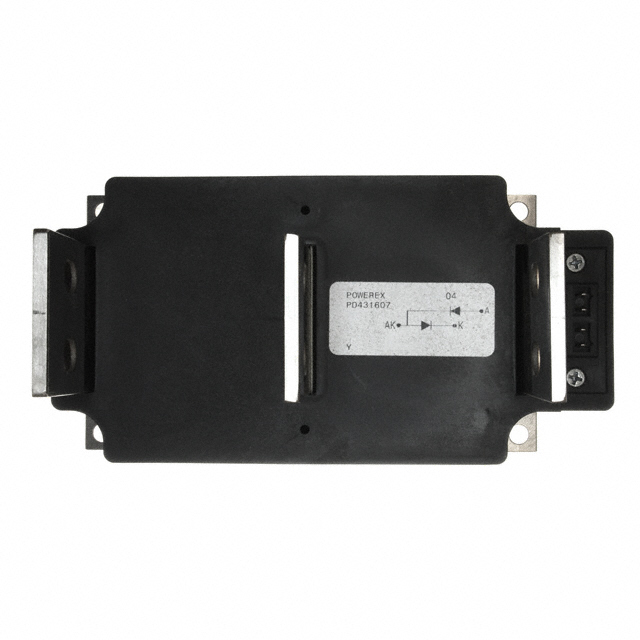

PD431607
SCR MODULE ISO DUAL 1600V 700AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 1550 A Series Connection - All SCRs Chassis Mount POW-R-BLOK™ Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 69000A, 63000A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 700 A |
| Voltage - Gate Trigger (Vgt) (Max) | 4.5 V |
| Current - On State (It (RMS)) (Max) | 1550 A |
| Voltage - Off State | 1.6 kV |
