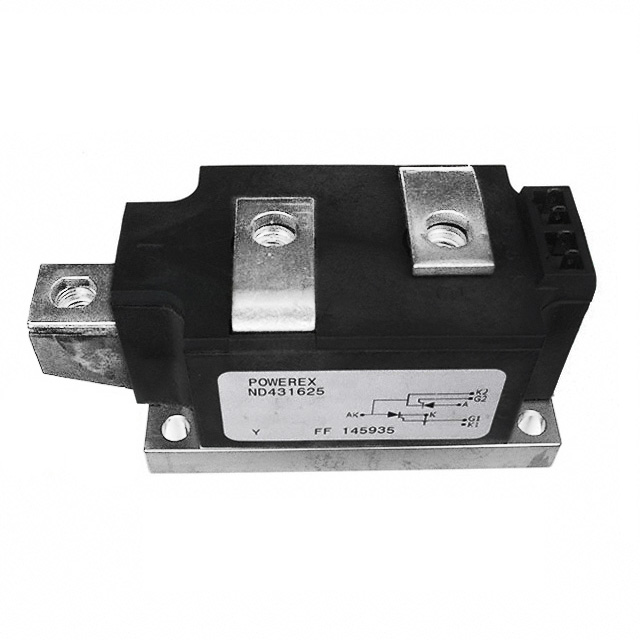

ND431625
SCR MODULE ISO DUAL 1600V 250AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
Powerex Inc. ND431625 is a dual SCR module featuring a 1.6 kV repetitive peak off-state voltage and 393 A RMS on-state current. This module utilizes a series connection for both SCRs, facilitating high-power switching applications. The device is designed for chassis mounting and offers a high surge capability of 8800 A at 60 Hz. Key electrical parameters include a maximum gate trigger current (Igt) of 150 mA and a maximum gate trigger voltage (Vgt) of 3 V. Operating within a junction temperature range of -40°C to 130°C, this POW-R-BLOK™ module is suitable for industrial power control, motor drives, and power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8800A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 250 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 393 A |
| Voltage - Off State | 1.6 kV |
