LDR31650
SCR MODULE 1800V 785A POW-R-BLOKManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More

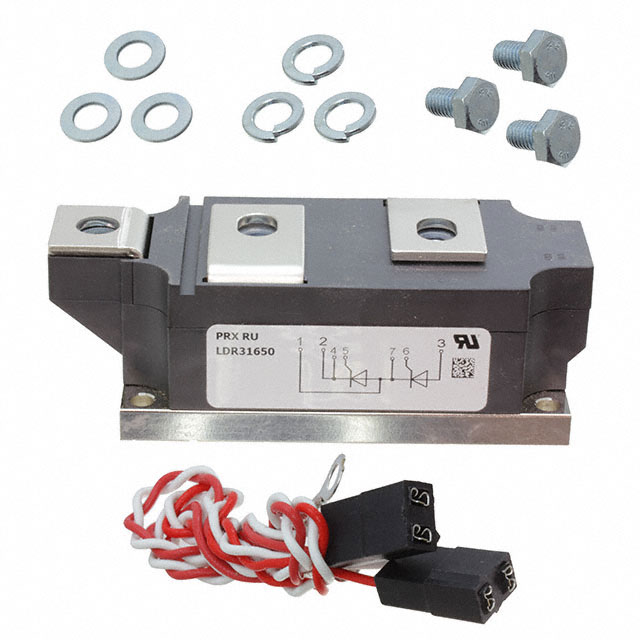

The Powerex Inc. LDR31650 is a high-power SCR module designed for robust industrial applications. This POW-R-BLOK™ module features two SCRs in a series connection with diodes, offering a blocking voltage of 1.8 kV and a continuous on-state current of 785 A RMS. Its high surge current capability, rated at 18000A and 20000A at 50/60Hz, ensures reliability under transient conditions. The module's design supports chassis mounting for efficient thermal management. Key electrical parameters include a gate trigger current (Igt) of 250 mA and a gate trigger voltage (Vgt) of 2.5 V, with a holding current (Ih) of 300 mA. Operating across a temperature range of -40°C to 130°C, this component is suitable for demanding applications in power control, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 18000A, 20000A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 785 A |
| Voltage - Off State | 1.8 kV |
