LD430850
SCR MOD ISO DUAL 800V 500AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More

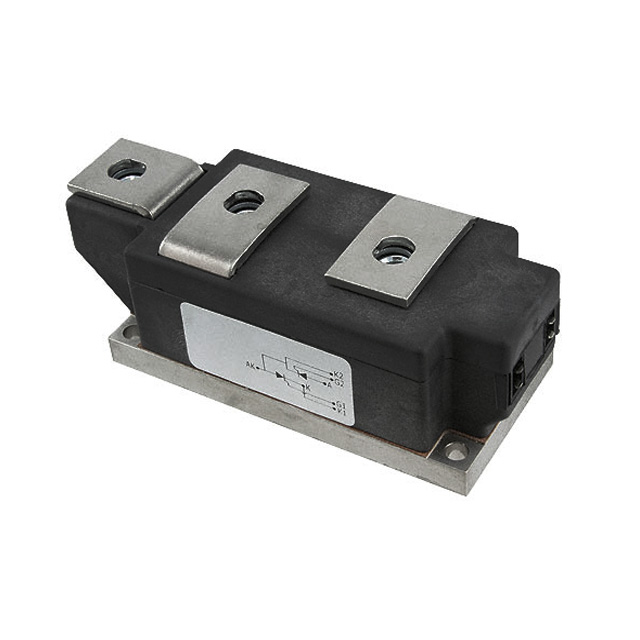

Powerex Inc. LD430850, a dual SCR module with a series connection configuration, offers robust performance for high-power applications. This chassis-mount component features an 800V off-state voltage and a 500A average on-state current (It(AV)). Surge capability is rated at 16300A and 17000A at 50Hz and 60Hz respectively. The module utilizes a POW-R-BLOK™ package and operates within a temperature range of -40°C to 130°C. Gate trigger characteristics include a maximum of 200mA (Igt) and 3V (Vgt). The LD430850 is suitable for power control and conversion in industrial motor drives, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16300A, 17000A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 900 A |
| Voltage - Off State | 800 V |
