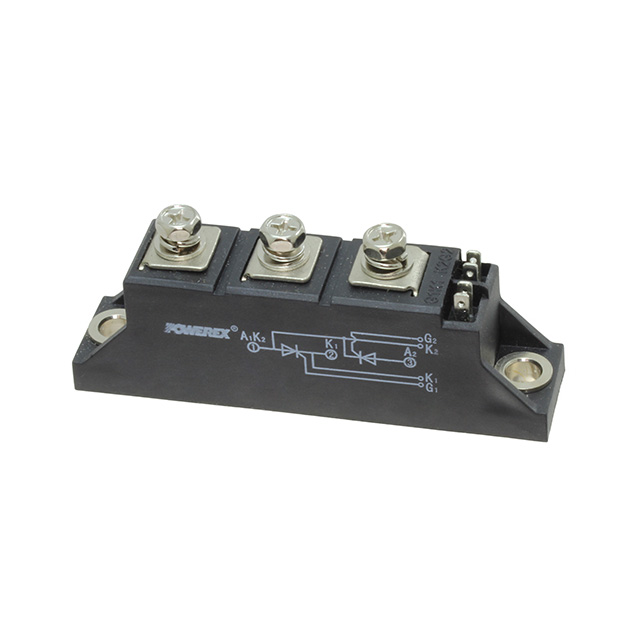

CM4208A2
SCR MOD PWR-BLK 800V 25AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 800 V 39 A Series Connection - SCR/Diode Chassis Mount POW-R-BLOK™ Module
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 445A, 490A |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 39 A |
| Voltage - Off State | 800 V |
Request a Quote
Clients Also Buy

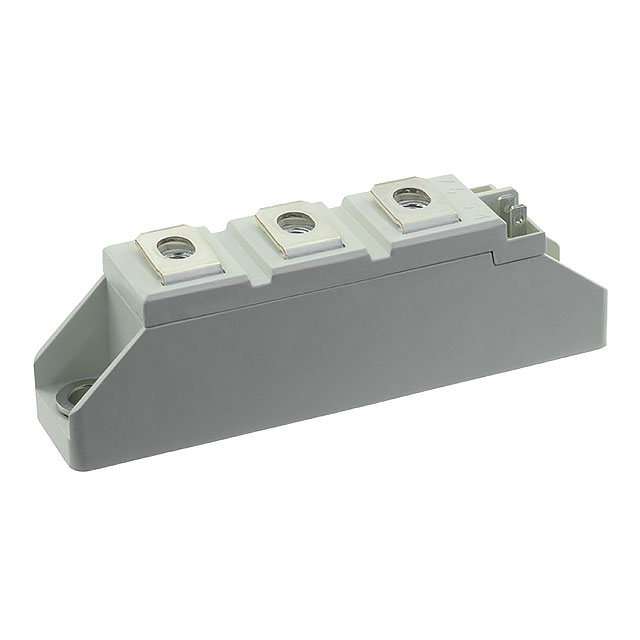

CD421690B
