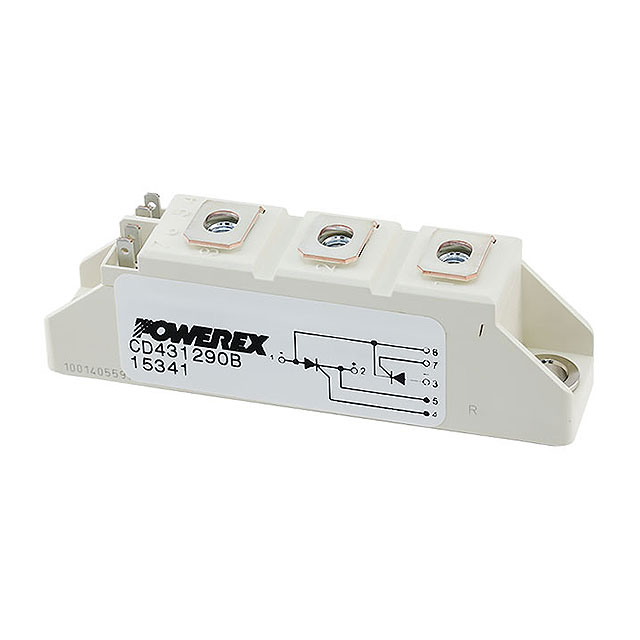

CD431290B
SCR MOD ISO DUAL 1200V 90AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
Powerex Inc. CD431290B is a dual SCR module designed for high-power applications. This POW-R-BLOK™ module features two SCRs connected in series, capable of handling an off-state voltage of 1.2 kV and an average on-state current of 95 A (150 A RMS). The module offers robust surge handling with a non-repetitive surge current rating of 2000 A at 50 Hz and 2100 A at 60 Hz. Gate trigger characteristics include a maximum gate trigger voltage (Vgt) of 3 V and a maximum gate trigger current (Igt) of 150 mA. The hold current (Ih) is rated at a maximum of 250 mA. Operating within a temperature range of -40°C to 125°C (TJ), this chassis-mount component is suitable for demanding industrial environments. Its configuration is ideal for power control and switching in motor drives, welding equipment, and power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2000A, 2100A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 95 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 150 A |
| Voltage - Off State | 1.2 kV |
