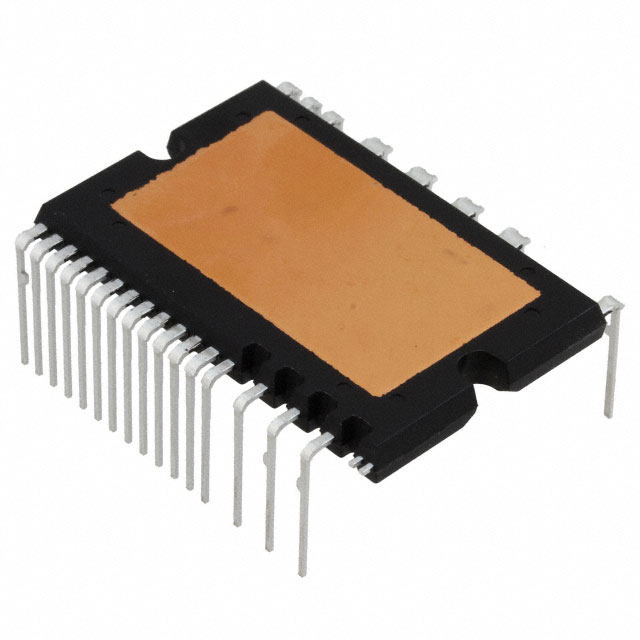

PSS35S92F6-AG
MOD IPM 6-PAC 35A 600V DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
The Powerex Inc. PSS35S92F6-AG is a high-performance 6-pack Intelligent Power Module (IPM) designed for demanding industrial applications. This through-hole mounted module features a 600V breakdown voltage and a continuous current rating of 35A, utilizing IGBT technology for efficient power switching. The 25-PowerDIP Module package, measuring 1.134 inches (28.80mm), integrates six IGBTs with freewheeling diodes and gate driver circuitry for simplified system design. With an isolation voltage of 1500Vrms, it ensures robust performance in environments requiring electrical isolation. This component is commonly employed in motor drives, industrial automation, and power conversion systems where reliability and efficiency are paramount. The PSS35S92F6-AG is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 25-PowerDIP Module (1.134"", 28.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 1500Vrms |
| Current | 35 A |
| Voltage | 600 V |
