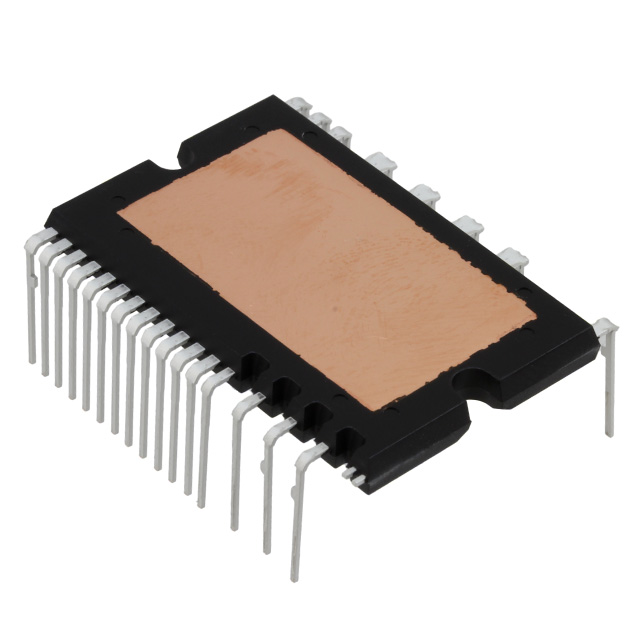

PSS20S92F6-AG
MOD IPM 6-PAC 20A 600V DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
The Powerex Inc. PSS20S92F6-AG is a 3-phase Intelligent Power Module (IPM) designed for high-performance power control applications. This module integrates IGBTs and a driver IC, offering a compact and efficient solution for power conversion. It features a 600V blocking voltage and a continuous collector current rating of 20A, making it suitable for demanding motor drive and inverter systems. The PSS20S92F6-AG utilizes a 25-PowerDIP Module package, facilitating through-hole mounting on printed circuit boards. With an isolation voltage of 1500Vrms, it ensures robust electrical safety. This component is commonly found in industrial automation, renewable energy inverters, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 25-PowerDIP Module (1.134"", 28.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 1500Vrms |
| Current | 20 A |
| Voltage | 600 V |
