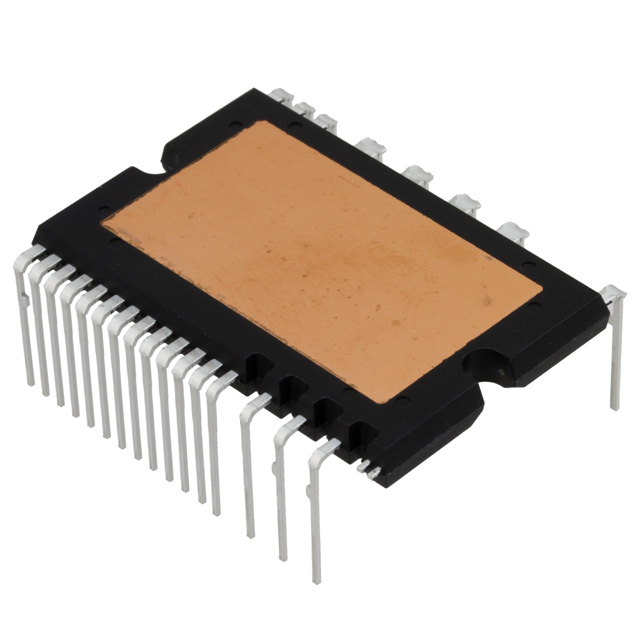

PSS15S92F6-AG
MOD IPM 6-PAC 15A 600V DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
The Powerex Inc. PSS15S92F6-AG is a 6-in-1 intelligent power module designed for 3-phase applications. This IGBT-based module offers a robust 600V blocking voltage and a continuous collector current rating of 15A, making it suitable for demanding power conversion systems. Featuring a 25-PowerDIP module package with through-hole mounting, it provides excellent thermal performance and ease of integration. The module incorporates integrated gate driver circuitry, simplifying system design and reducing component count. Its 1500Vrms isolation voltage ensures reliable operation in high-voltage environments. Applications for the PSS15S92F6-AG include industrial motor drives, uninterruptible power supplies (UPS), and renewable energy inverters.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 25-PowerDIP Module (1.134"", 28.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 1500Vrms |
| Current | 15 A |
| Voltage | 600 V |
