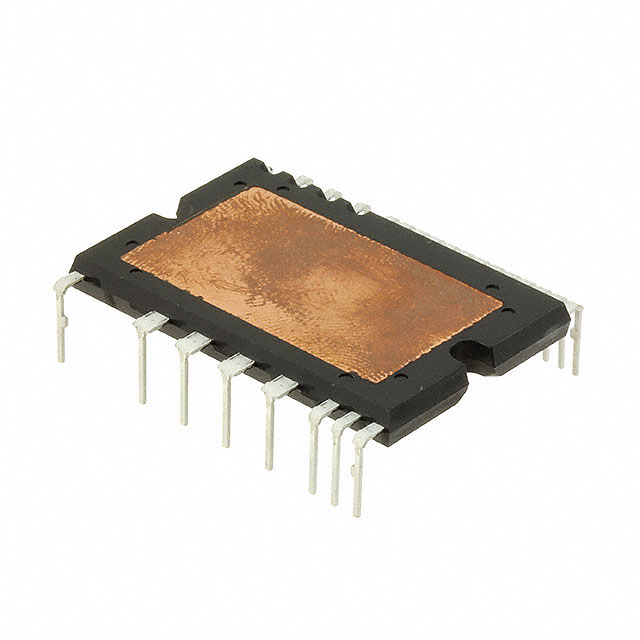

PS21965-4
MOD IPM 600V 20A SUPERMINIDIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
Powerex Inc. Intellimod™ PS21965-4 is a 3-phase, 600V, 20A IGBT power driver module designed for efficient power conversion. This module integrates a high-voltage IGBT chip with a gate driver circuit, offering a compact and robust solution for demanding applications. Featuring a Through Hole mounting type and housed in a 25-PowerDIP Module package, it provides a 1500VDC isolation voltage. The PS21965-4 is commonly utilized in industrial motor drives, power supplies, and electric vehicle charging systems, where high power density and reliability are critical. Its Intellimod™ series designation signifies advanced integration and performance characteristics.
Additional Information
Series: Intellimod™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 25-PowerDIP Module (1.134"", 28.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 1500VDC |
| Current | 20 A |
| Voltage | 600 V |
Request a Quote
