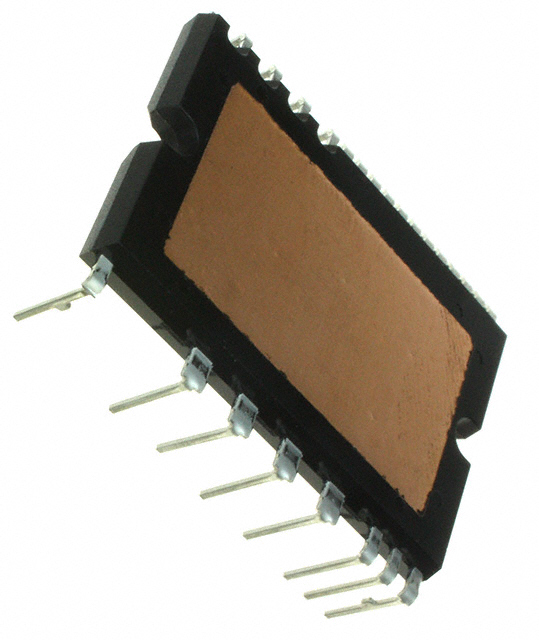

PS21961-4
MOD IPM 600V 3A SUPERMINI DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
The Powerex Inc. Intellimod™ PS21961-4 is a 600V, 3A, 3-phase IGBT power driver module housed in a 25-PowerDIP Module package. This Supermini DIP module offers a 1500VDC isolation voltage and is designed for through-hole mounting. Its robust construction and integrated driver functionality make it suitable for demanding applications in industrial motor drives, renewable energy systems, and power factor correction circuits. The PS21961-4 provides a compact and efficient solution for high-power switching applications, simplifying board layout and reducing component count.
Additional Information
Series: Intellimod™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 25-PowerDIP Module (1.134"", 28.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 1500VDC |
| Current | 3 A |
| Voltage | 600 V |
