PS21767
MOD IPM 600V 30A MINI DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More

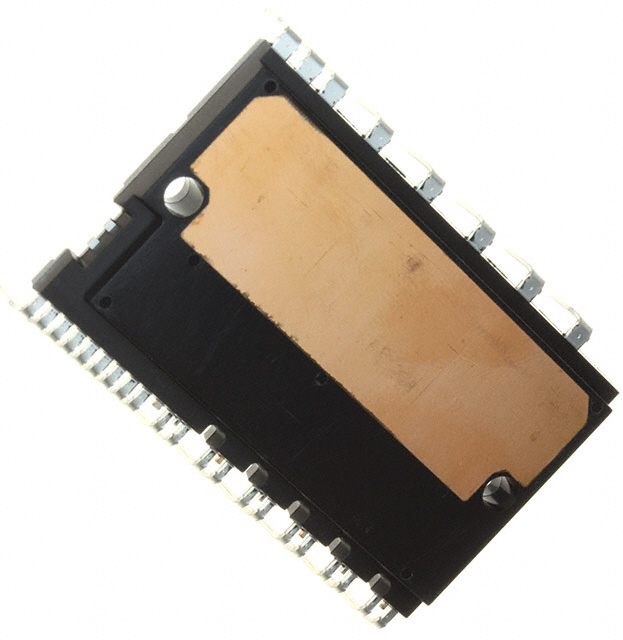

Powerex Inc. Intellimod™ PS21767 is a 3-phase intelligent power module (IPM) designed for demanding industrial applications. This IGBT-based module offers a robust 600V blocking voltage and a continuous current capability of 30A, making it suitable for motor control, power conversion, and renewable energy systems. The PS21767 integrates high-performance IGBTs with a gate driver and protection circuitry within a compact 38-PowerDIP package, facilitating efficient thermal management and simplified board layout. It features 2500VDC isolation voltage for enhanced system reliability. The module's through-hole mounting ensures secure integration into existing designs.
Additional Information
Series: Intellimod™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 38-PowerDIP Module (1.413"", 35.90mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500VDC |
| Current | 30 A |
| Voltage | 600 V |
