PS21765
MOD IPM 600V 20A MINI DIPManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More

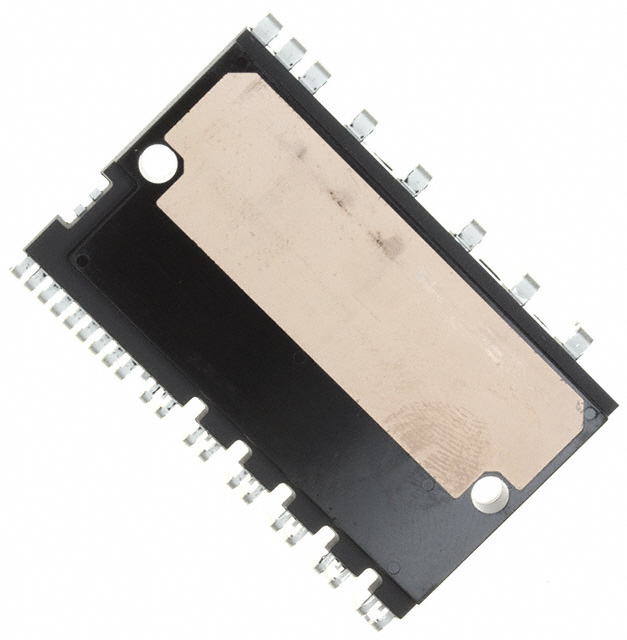

Powerex Inc. Intellimod™ PS21765 is a 3-phase IGBT power driver module offering a 600V blocking voltage and a 20A continuous collector current. This compact 38-PowerDIP module, measuring 35.90mm, features through-hole mounting and provides 2500VDC isolation voltage. Designed for high-efficiency power conversion, the PS21765 is suitable for applications in industrial motor control, renewable energy systems, and power supply units where robust performance and thermal management are critical. Its integrated intelligent power module (IPM) architecture simplifies design by combining IGBTs, drivers, and protection circuits within a single package, reducing component count and board space.
Additional Information
Series: Intellimod™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 38-PowerDIP Module (1.413"", 35.90mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500VDC |
| Current | 20 A |
| Voltage | 600 V |
