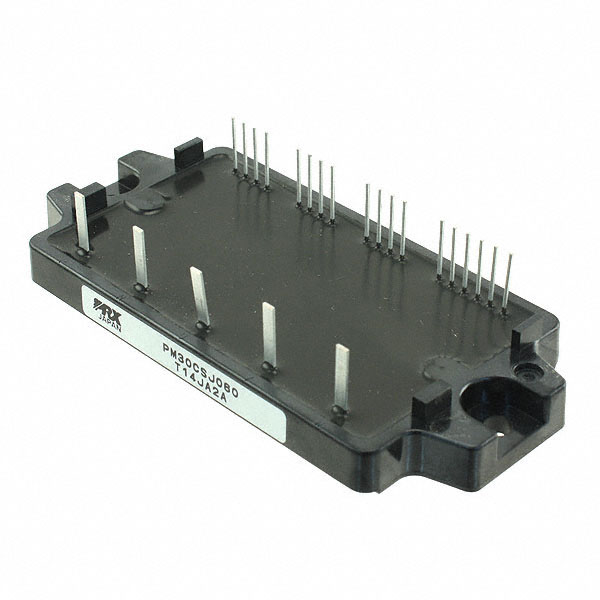

PM30CSJ060
MOD IPM 6PAC 600V 30AManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
Powerex Inc. Intellimod™ PM30CSJ060 is a 3-phase IGBT power module designed for high-efficiency power conversion. This compact module integrates six IGBTs, a high-speed switching driver, and protection functions within a single package, facilitating simplified design and reduced component count. It features a 600V blocking voltage and a continuous current capability of 30A. The isolation voltage is rated at 2500Vrms, ensuring robust performance in demanding applications. Suitable for chassis mounting, the PM30CSJ060 is widely utilized in industrial motor drives, renewable energy systems, and uninterruptible power supplies (UPS). Manufactured by Powerex Inc., this module exemplifies advanced power electronics packaging for reliable operation.
Additional Information
Series: Intellimod™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Power Module |
| Mounting Type | Chassis Mount |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 30 A |
| Voltage | 600 V |
