PM300DSA120
MOD IPM DUAL 1200V 300AManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More

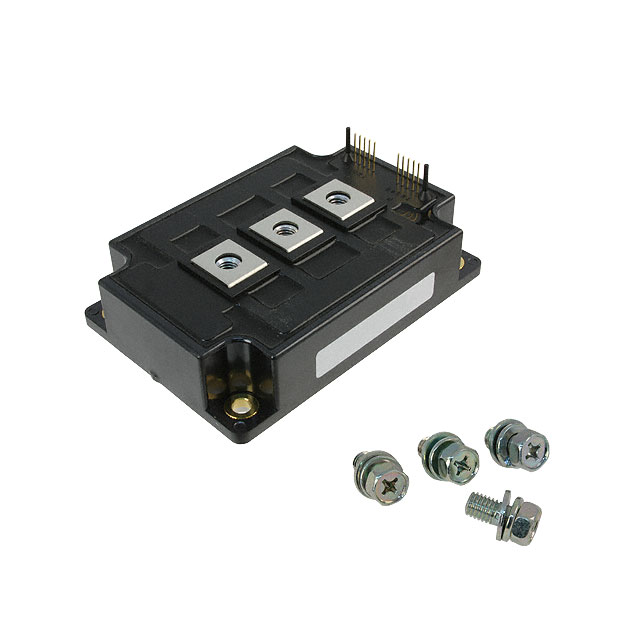

Powerex Inc. Intellimod™ PM300DSA120 is a dual IGBT power driver module designed for single-phase inverter applications. This chassis-mount power module features a robust 1.2 kV blocking voltage and a continuous collector current rating of 300 A. It offers an isolation voltage of 2500Vrms, ensuring reliable operation in demanding environments. The Intellimod™ series from Powerex Inc. is engineered for high efficiency and compact integration, commonly found in industrial motor drives, uninterruptible power supplies (UPS), and power factor correction systems. The bulk packaging is suitable for high-volume production runs.
Additional Information
Series: Intellimod™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Power Module |
| Mounting Type | Chassis Mount |
| Type | IGBT |
| Configuration | 1 Phase Inverter |
| Voltage - Isolation | 2500Vrms |
| Current | 300 A |
| Voltage | 1.2 kV |
