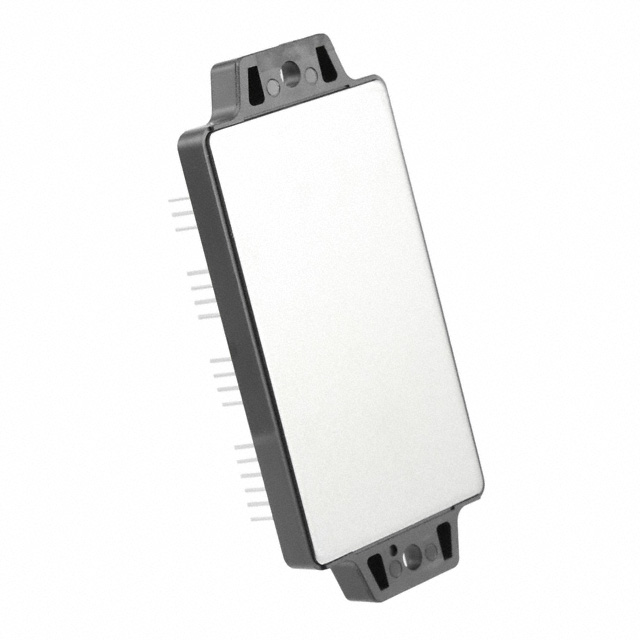

PM20CSJ060
MOD IPM 6PAC 600V 20AManufacturer: Powerex Inc.
Categories: Power Driver Modules
Quality Control: Learn More
The Powerex Inc. Intellimod™ PM20CSJ060 is a 3-phase IGBT power module designed for demanding industrial applications. This 6-pack configuration delivers 600V and a continuous current rating of 20A, offering robust performance in power conversion systems. Featuring a 2500Vrms isolation voltage, this module ensures reliable operation in environments requiring high dielectric strength. Its chassis mount design facilitates straightforward integration into power assemblies. Applications for the PM20CSJ060 include industrial motor drives, uninterruptible power supplies (UPS), and power factor correction systems. The module's advanced construction provides thermal management capabilities essential for high-power density designs.
Additional Information
Series: Intellimod™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Power Module |
| Mounting Type | Chassis Mount |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2500Vrms |
| Current | 20 A |
| Voltage | 600 V |
