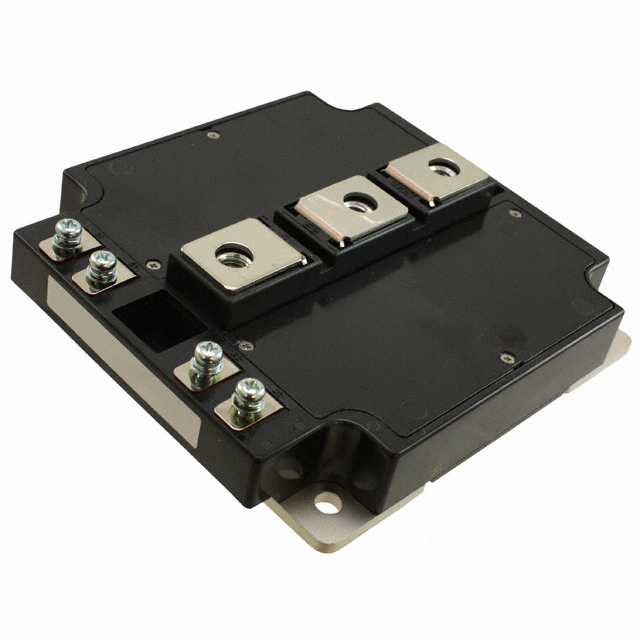

CM800DY-24S
IGBT MOD 1200V 790A 5355WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM800DY-24S is a high-performance IGBT module configured as a half-bridge. This module offers a 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 790 A, with a maximum power dissipation of 5355 W. The module features a low on-state voltage of 2.4V at 15V gate-emitter voltage and 800A collector current, and an input capacitance (Cies) of 80 nF at 10V. Designed for chassis mounting, it operates reliably across a wide temperature range of -40°C to 150°C (TJ). The CM800DY-24S is suitable for demanding applications in industrial motor drives, electric vehicle powertrains, and power conversion systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 800A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 790 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 5355 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 80 nF @ 10 V |
