CM75RX-24S
IGBT MOD 1200V 75A 600WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

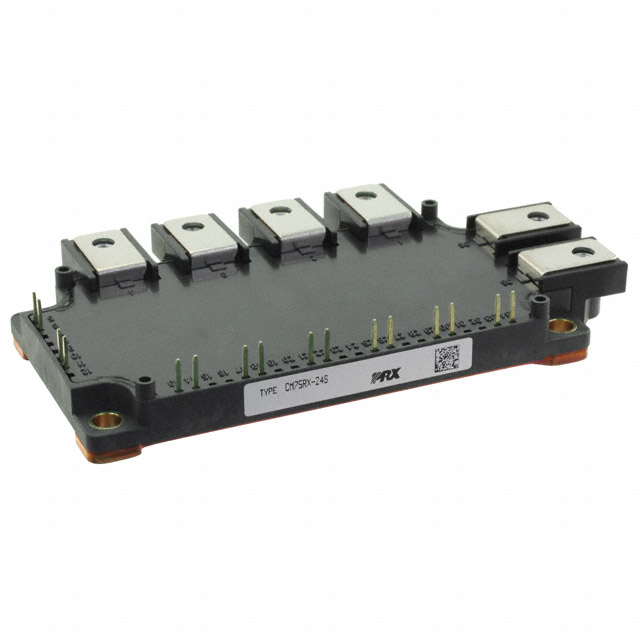

The Powerex Inc. IGBTMOD™ CM75RX-24S is a three-phase inverter IGBT module with integrated braking capability. This chassis-mount module offers a 1200V collector-emitter breakdown voltage and a 75A continuous collector current (Ic). It features a maximum power dissipation of 600W and a typical Vce(on) of 2.15V at 15V gate-emitter voltage and 75A collector current. The input capacitance (Cies) is rated at 7.5nF at 10V. An integrated NTC thermistor is included for thermal management. This component is suitable for applications in industrial motor drives, uninterruptible power supplies (UPS), and renewable energy systems. It is supplied in Bulk packaging.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter with Brake |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 600 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 7.5 nF @ 10 V |
