CM75E3U-12H
IGBT MODULE 600V 75A 310WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

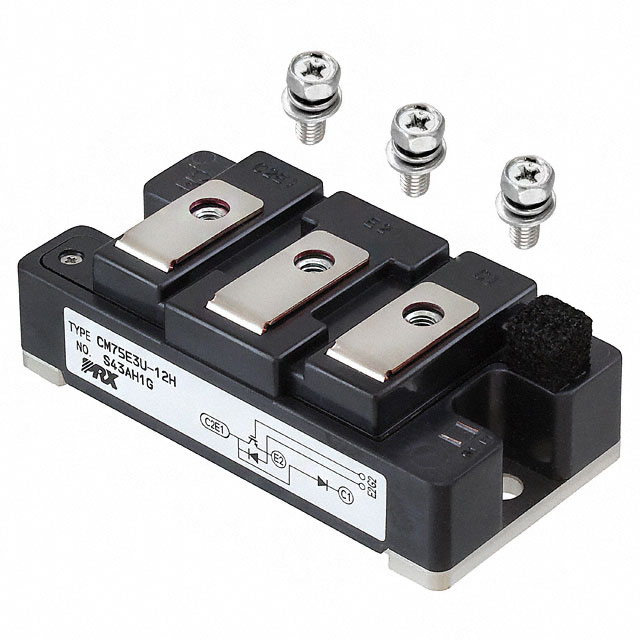

The Powerex Inc. CM75E3U-12H is a single IGBTMOD™ series module designed for demanding power applications. This chassis mount module features a 600V collector-emitter breakdown voltage and a maximum collector current of 75A. With a power dissipation capability of 310W and a low Vce(on) of 3V at 15V Vge and 75A Ic, it offers efficient switching performance. The input capacitance (Cies) is 6.6 nF at 10V. Operating across a wide temperature range of -40°C to 150°C (TJ), this module is suitable for industrial motor drives, power supplies, and renewable energy systems. The package is a module, supplied in bulk for high-volume integration.
Additional Information
Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 75A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 310 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 6.6 nF @ 10 V |
