CM75DU-12F

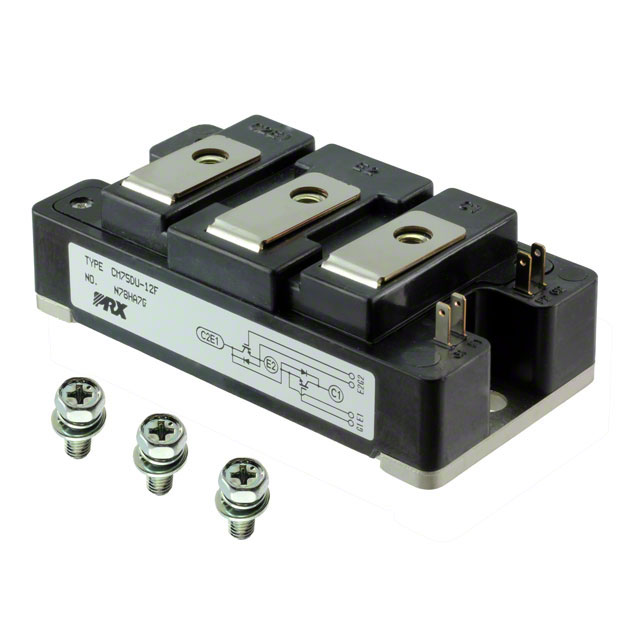

IGBT MODULE 600V 75A 290WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBT Module CM75DU-12F from the IGBTMOD™ series is a trench half-bridge configuration designed for high-power applications. This chassis mount module features a 600 V collector-emitter breakdown voltage and a maximum collector current of 75 A. With a power dissipation rating of 290 W and a low on-state voltage of 2.2 V at 15 V gate-emitter voltage and 75 A collector current, it offers efficient power switching. The module has a typical input capacitance (Cies) of 20 nF at 10 V and an operating temperature range of -40°C to 150°C (TJ). This component is suitable for use in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 75A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 290 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 20 nF @ 10 V |
