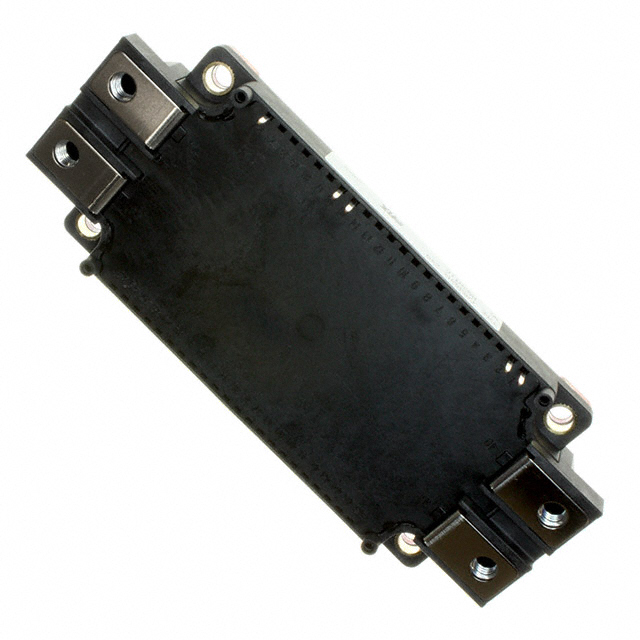

CM600HX-24A

IGBT MOD 1200V 600A 3785W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM600HX-24A is a single configuration IGBT module designed for high-power applications. This chassis mount module features a maximum collector current of 600 A and a collector-emitter breakdown voltage of 1200 V. The module offers a maximum power dissipation of 3785 W and a typical Vce(on) of 2.6V at 15V gate-emitter voltage and 600A collector current. Input capacitance (Cies) is rated at 100 nF at 10V. The CM600HX-24A includes an integrated NTC thermistor for thermal management and operates within a temperature range of -40°C to 150°C (TJ). This component is suitable for use in industrial automation, power conversion systems, and electric vehicle powertrains.

Additional Information

Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationSingle
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 600A
NTC ThermistorYes
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)600 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max3785 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce100 nF @ 10 V
