CM600HU-12F

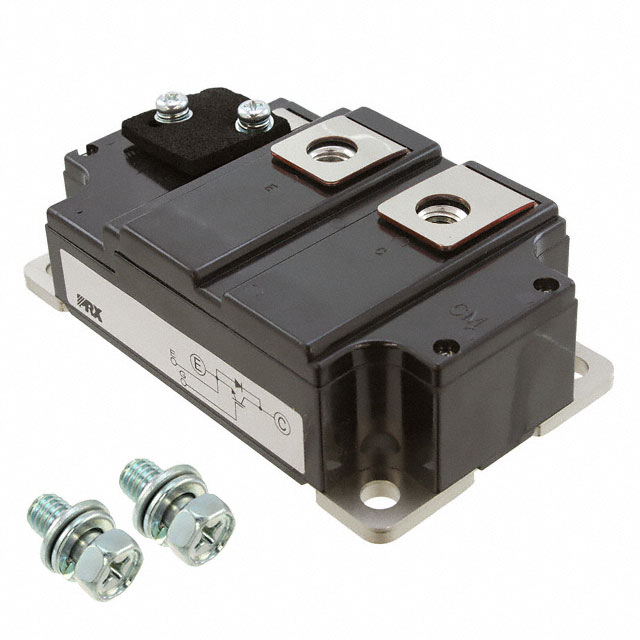

IGBT MOD 600V 600A 1420WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ series, part number CM600HU-12F, is a single trench IGBT module with a 600V collector-emitter breakdown voltage and a maximum collector current of 600A. This module delivers 1420W of power with a Vce(on) of 2.2V at 15V Vge and 600A. Featuring a chassis mount package, it operates across a temperature range of -40°C to 150°C (TJ). The CM600HU-12F is suitable for demanding applications in industrial power systems, electric vehicles, and renewable energy generation.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 1420 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 160 nF @ 10 V |
