CM600DY-24S
IGBT MOD 1200V 600A 4050WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

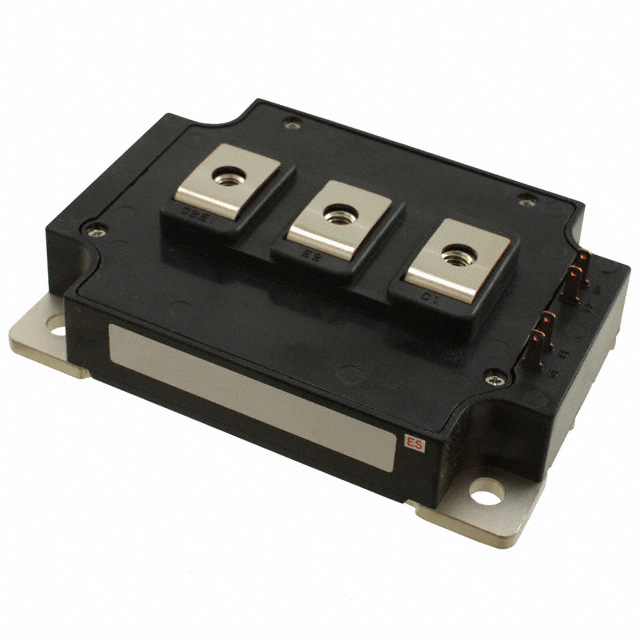

The Powerex Inc. CM600DY-24S is a high-performance IGBT module designed for demanding power applications. This half-bridge configuration offers a robust 1200V collector-emitter breakdown voltage and a maximum collector current of 600A, with a power dissipation rating of 4050W. Featuring a low collector-emitter saturation voltage of 2.25V at 15V gate-emitter voltage and 600A, this module ensures efficient operation. The input capacitance is specified at 60 nF at 10V. Engineered for reliability, it operates across a wide temperature range of -40°C to 150°C. The chassis mount package facilitates integration into power systems for industries such as industrial automation, renewable energy, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 4050 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 60 nF @ 10 V |
