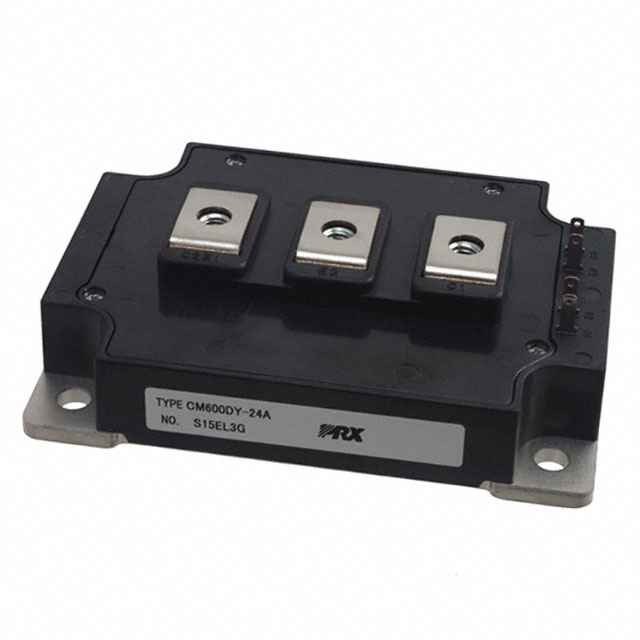

CM600DY-24A
IGBT MOD 1200V 600A 3670WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM600DY-24A is a high-power IGBT module featuring a half-bridge configuration. This module is rated for a collector-emitter voltage of 1200 V and a continuous collector current of 600 A, with a maximum power dissipation of 3670 W. The Vce(on) is specified at 3 V with a gate-emitter voltage of 15 V and a collector current of 600 A. Input capacitance (Cies) is 94 nF at 10 V. Designed for chassis mounting, this module operates across a wide temperature range from -40°C to 150°C. Applications include industrial motor drives, electric vehicle powertrains, and renewable energy systems. The CM600DY-24A offers robust performance for demanding power conversion applications.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 3670 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 94 nF @ 10 V |
