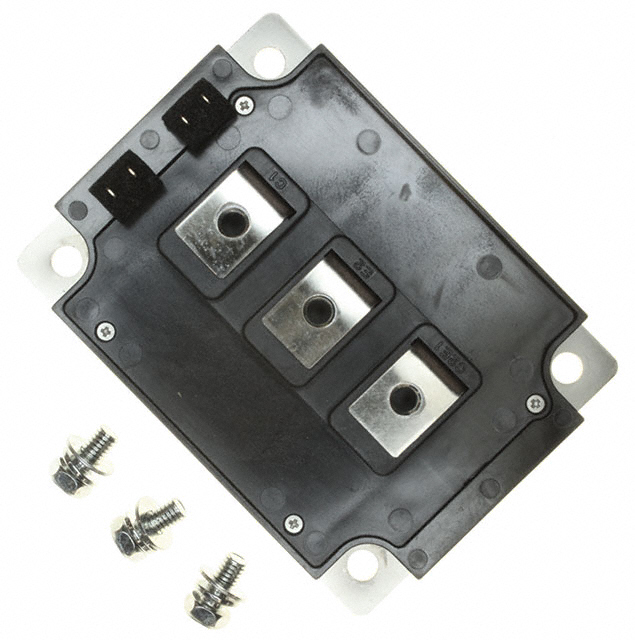

CM600DY-12NF
IGBT MOD 600V 600A 1130WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
The Powerex Inc. IGBTMOD™ CM600DY-12NF is a high-performance IGBT module featuring a half-bridge configuration. This module is designed for demanding applications, offering a 600V collector-emitter breakdown voltage and a maximum collector current of 600A. With a power dissipation capability of 1130W, it is suitable for power conversion systems. The module utilizes a standard input and has an input capacitance (Cies) of 90 nF at 10V. Its low collector-emitter saturation voltage (Vce(on)) of 2.2V at 15V and 600A ensures efficient operation. The CM600DY-12NF is chassis mountable for robust thermal management and operates across a wide temperature range of -40°C to 150°C. This component is commonly found in industrial motor drives, renewable energy inverters, and power supply applications.
Additional Information
Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 600A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 600 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 1130 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 90 nF @ 10 V |
