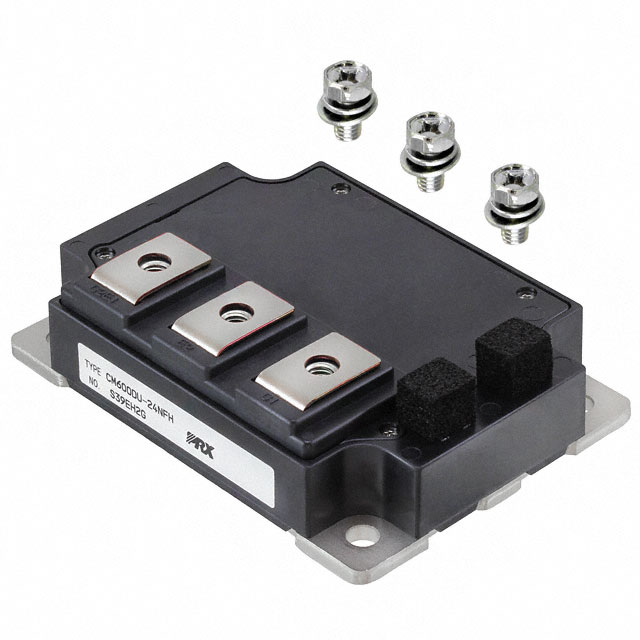

CM600DU-24NFH

IGBT MOD 1200V 600A 1550W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

The Powerex Inc. CM600DU-24NFH is a high-performance IGBT Module from the IGBTMOD™ series, featuring a Half Bridge configuration. This module is designed for robust power applications, offering a collector-emitter voltage rating of 1200 V and a continuous collector current capability of 600 A. With a maximum power dissipation of 1550 W, it is well-suited for demanding environments. The module exhibits a low on-state voltage (Vce(on)) of 6.5 V at 15 V gate-emitter voltage and 600 A collector current, ensuring efficient power transfer. Input capacitance (Cies) is specified at 95 nF at 10 V. Engineered for reliability, it operates across a wide temperature range from -40°C to 150°C (TJ) and utilizes a convenient chassis mount for integration. This component is utilized in industries such as industrial automation, renewable energy, and electric vehicle powertrains.

Additional Information

Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic6.5V @ 15V, 600A
NTC ThermistorNo
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)600 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max1550 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce95 nF @ 10 V
