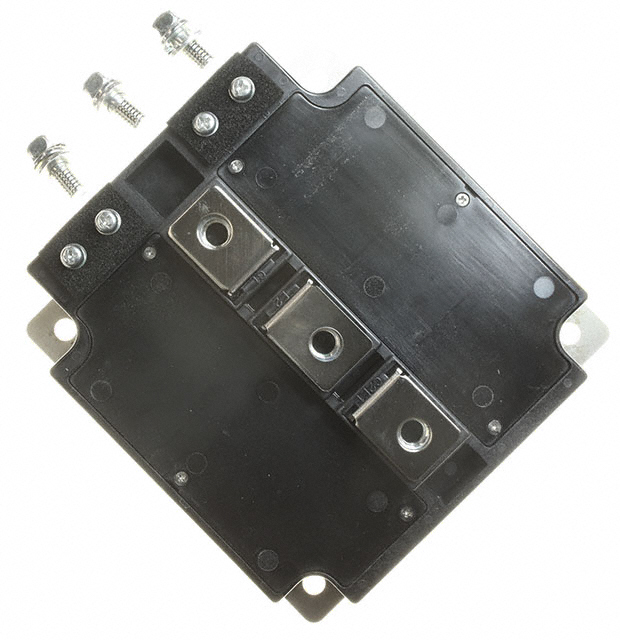

CM600DU-24NF

IGBT MOD 1200V 600A 2080W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM600DU-24NF is a half-bridge IGBT module designed for high-power applications. This module features a 1200V collector-emitter breakdown voltage and a continuous collector current capability of 600A. With a maximum power dissipation of 2080W and a Vce(on) of 2.65V at 15V gate-emitter voltage and 600A collector current, it offers efficient power handling. The module has a typical input capacitance (Cies) of 140 nF at 10V. It is constructed for chassis mounting and operates within a temperature range of -40°C to 150°C (TJ). This component finds application in industrial motor drives, electric vehicle powertrains, and renewable energy inverters.

Additional Information

Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.65V @ 15V, 600A
NTC ThermistorNo
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)600 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max2080 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce140 nF @ 10 V
