CM450DY-24S
IGBT MOD 1200V 410A 3330WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

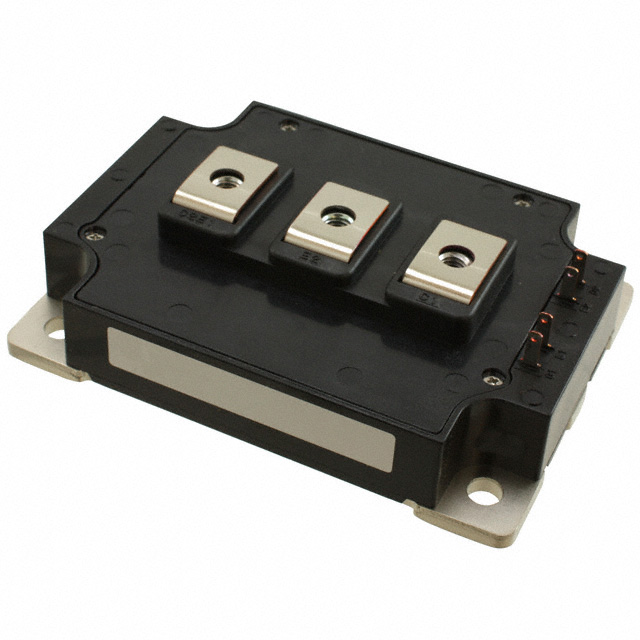

Powerex Inc. IGBTMOD™ CM450DY-24S is a high-power IGBT module featuring a half-bridge configuration. This module is rated for a collector-emitter breakdown voltage of 1200 V and a continuous collector current of 410 A. The maximum power dissipation is 3330 W, with a typical Vce(on) of 2.25 V at 15 V gate-emitter voltage and 450 A collector current. Input capacitance (Cies) is specified at 45 nF at 10 V. The device has a maximum collector cutoff current of 1 mA and operates across a wide temperature range of -40°C to 150°C (TJ). Designed for chassis mounting, this module is suitable for demanding applications in industrial power systems, motor drives, and renewable energy inverters.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 450A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 410 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 3330 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 45 nF @ 10 V |
