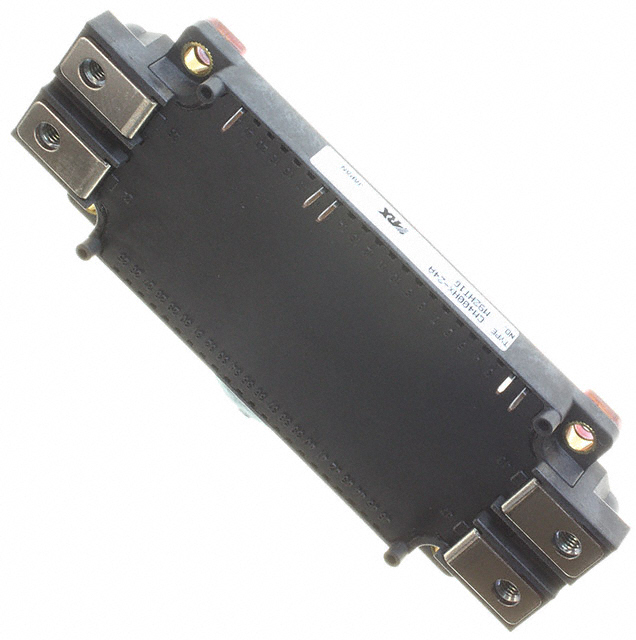

CM400HX-24A
IGBT MOD 1200V 400A 2450WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM400HX-24A is a single-configuration IGBT module designed for high-power applications. This module features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 400 A. With a power dissipation rating of 2450 W, it is suitable for demanding industrial environments. The module incorporates an NTC thermistor for temperature monitoring and has a low on-state voltage of 2.6V at 15V gate-emitter voltage and 400A collector current. Input capacitance (Cies) is specified at 66 nF at 10 V. The CM400HX-24A is chassis mountable, facilitating efficient thermal management in systems operating within a temperature range of -40°C to 150°C. Typical applications include power conversion and motor control in industries such as renewable energy and industrial automation.
Additional Information
Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2450 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 66 nF @ 10 V |
