CM400HU-24F
IGBT MOD 1200V 400A 1600WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

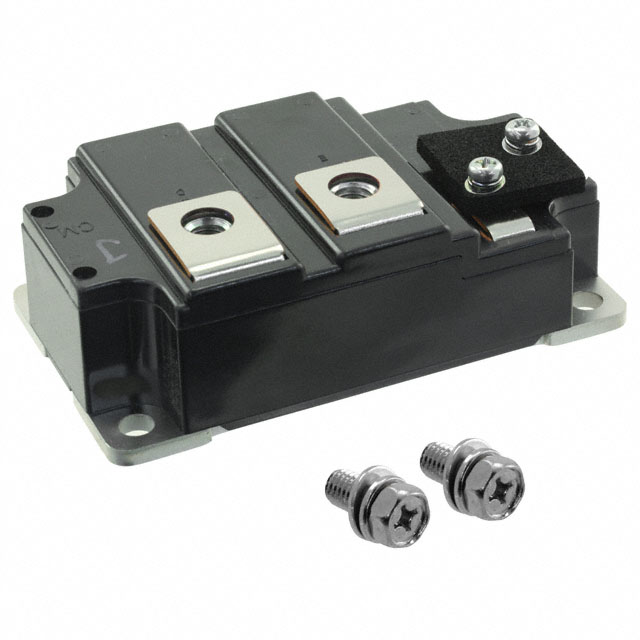

The Powerex Inc. IGBTMOD™ CM400HU-24F is a single trench IGBT module designed for high-power applications. This module features a collector-emitter breakdown voltage of 1200 V and a maximum collector current of 400 A, with a power dissipation capability of 1600 W. The Vce(on) is specified at 2.4V at 15V gate-emitter voltage and 400A collector current. Input capacitance (Cies) is 160 nF at 10V. This chassis mount module operates across a temperature range of -40°C to 150°C (TJ) and is supplied in bulk packaging. It is suitable for use in industrial automation, renewable energy, and motor drive applications.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 400A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1600 W |
| Current - Collector Cutoff (Max) | 2 mA |
| Input Capacitance (Cies) @ Vce | 160 nF @ 10 V |
