CM400DY-24A
IGBT MOD 1200V 400A 2710WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

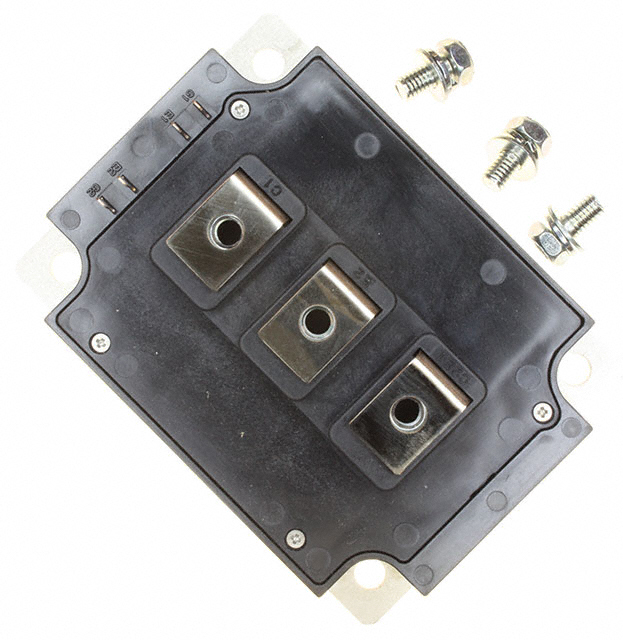

Powerex Inc. IGBTMOD™ CM400DY-24A is a Half Bridge IGBT Module designed for high-power applications. This chassis mount module offers a 1200V collector-emitter breakdown voltage and a continuous collector current capability of 400A, with a maximum power dissipation of 2710W. Featuring a standard input and a Vce(on) of 3V at 15V gate-emitter voltage and 400A collector current, this component is suitable for demanding industrial environments. The module operates across a temperature range of -40°C to 150°C (TJ). Its robust construction and specified parameters make it ideal for use in power conversion systems, motor drives, and renewable energy applications.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 400A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2710 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 70 nF @ 10 V |
