CM400DX-12A
IGBT MOD 600V 400A 1340WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

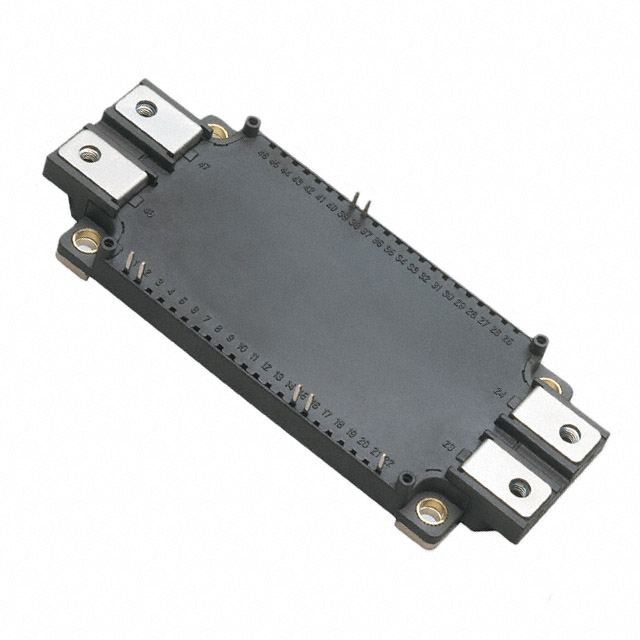

Powerex Inc. IGBTMOD™ CM400DX-12A. This IGBT module, configured as a half bridge, offers a 600V collector-emitter breakdown voltage and handles a maximum collector current of 400A. With a power dissipation rating of 1340W, it features a Vce(on) of 2.1V at 15V Vge and 400A. The module includes an integrated NTC thermistor for thermal management and is designed for chassis mounting. Its input capacitance (Cies) is 50 nF at 10V. Operating temperature ranges from -40°C to 150°C (TJ). This component is suitable for applications in industrial power systems, motor control, and renewable energy conversion.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 400A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 1340 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 50 nF @ 10 V |
