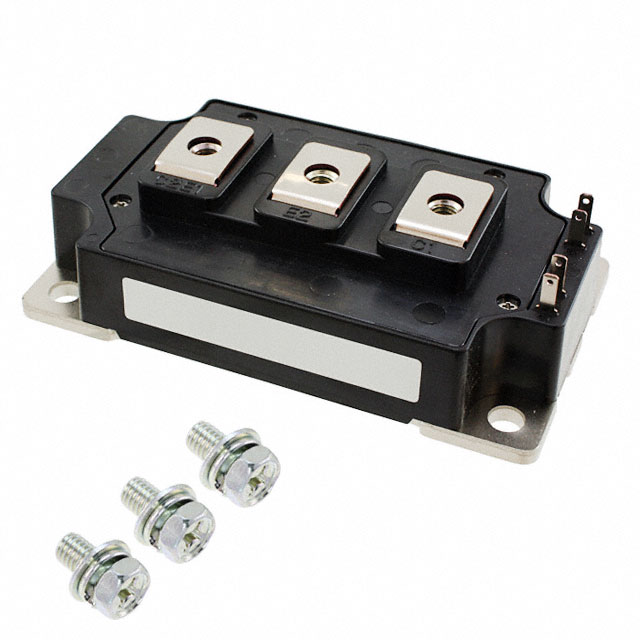

CM300DY-24S
IGBT MOD 1200V 300A 2270WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
The Powerex Inc. CM300DY-24S is a robust IGBT Module featuring a Half Bridge configuration. This component is rated for a maximum collector-emitter voltage of 1200 V and a continuous collector current of 300 A, with a maximum power dissipation of 2270 W. Key electrical characteristics include a Vce(on) of 2.25V at 15V gate-emitter voltage and 300A collector current, and an input capacitance (Cies) of 30 nF at 10V. The module operates reliably across a wide temperature range from -40°C to 150°C (TJ). Designed for chassis mounting, the CM300DY-24S is suitable for demanding applications in industrial motor drives, power supplies, and renewable energy systems. It is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2270 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 30 nF @ 10 V |
