CM300DY-24NF
IGBT MOD 1200V 300A 1130WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

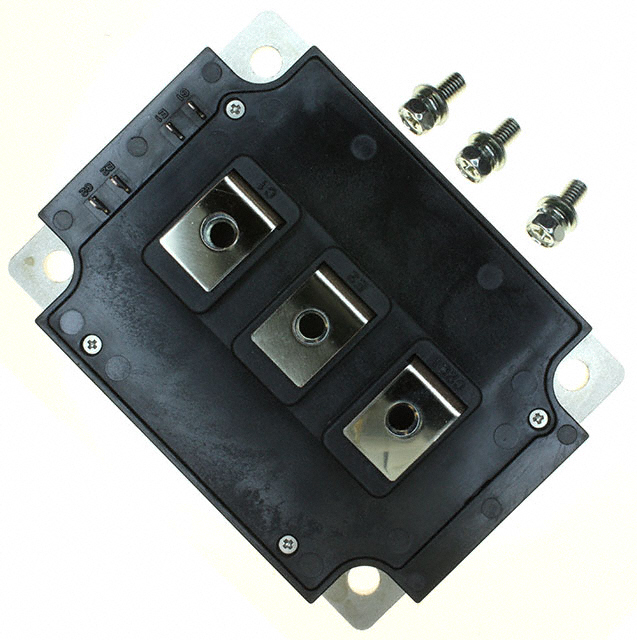

Powerex Inc. IGBTMOD™ CM300DY-24NF is a half-bridge IGBT module designed for high-power applications. This module features a collector-emitter voltage (Vce) rating of 1200 V and a continuous collector current (Ic) capability of 300 A. With a maximum power dissipation of 1130 W and a low Vce(on) of 2.5 V at 15 V gate-emitter voltage and 300 A collector current, it delivers efficient power switching. The module includes an input capacitance (Cies) of 70 nF at 10 V and operates across a temperature range of -40°C to 150°C (TJ). Its chassis mount configuration facilitates robust thermal management. This component is commonly utilized in industrial motor drives, renewable energy systems, and power supply applications.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1130 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 70 nF @ 10 V |
