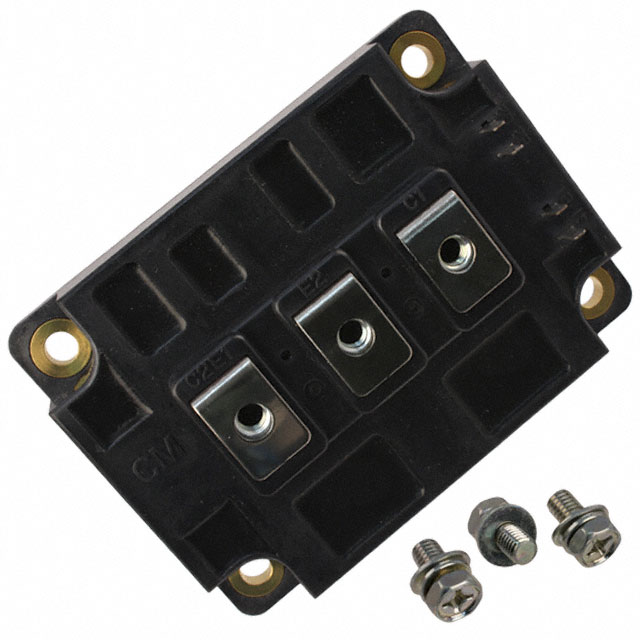

CM300DY-24H
IGBT MOD 1200V 300A 2100WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBT Module, Series IGBTMOD™, Part Number CM300DY-24H. This Half Bridge module offers a robust 1200 V collector-emitter breakdown voltage and a continuous 300 A collector current. With a maximum power dissipation of 2100 W, it features a Vce(on) of 3.2V at 15V gate-emitter voltage and 300A collector current. Input capacitance (Cies) is 60 nF at 10V. Designed for chassis mounting, this module operates effectively across a temperature range of -40°C to 150°C (TJ). Applications include industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2100 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 60 nF @ 10 V |
