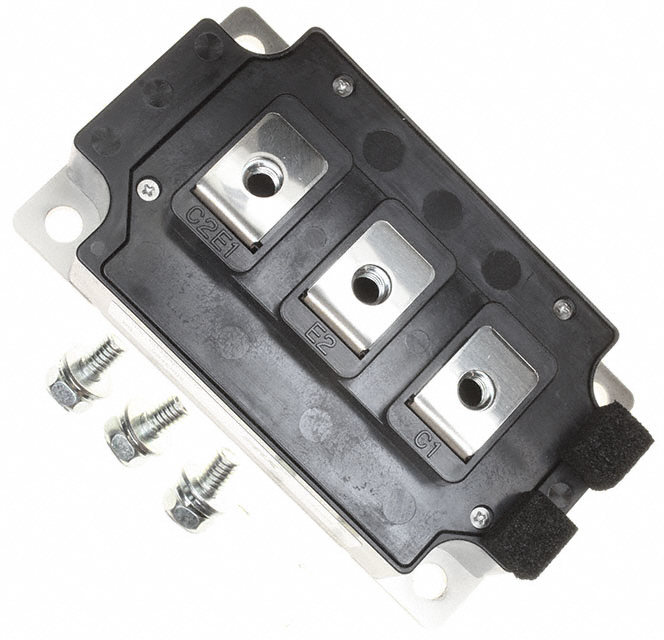

CM300DY-24A
IGBT MOD 1200V 300A 1890WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM300DY-24A is a Half Bridge IGBT module designed for high-power applications. This chassis-mount module offers a robust 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 300 A. With a maximum power dissipation of 1890 W, it is suitable for demanding power conversion and control systems. The module features a standard input and an input capacitance (Cies) of 47 nF at 10 V. The on-state voltage (Vce(on)) is rated at 3V for a gate-emitter voltage (Vge) of 15V and a collector current (Ic) of 300A. Operating across a temperature range of -40°C to 150°C, this component finds application in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1890 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 47 nF @ 10 V |
