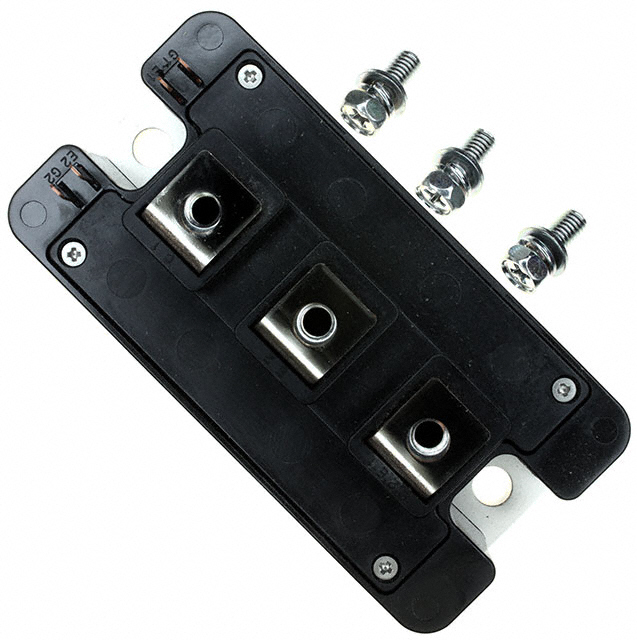

CM300DY-12NF
IGBT MOD 600V 300A 780WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
The Powerex Inc. IGBTMOD™ CM300DY-12NF is a high-performance IGBT module featuring a half-bridge configuration. This chassis-mountable module boasts a 600V collector-emitter breakdown voltage and a maximum collector current of 300A, with a power dissipation capability of 780W. It offers a low on-state voltage (Vce(on)) of 2.2V at 15V gate-emitter voltage and 300A collector current. Input capacitance (Cies) is rated at 45nF @ 10V. Operating temperature range is -40°C to 150°C (TJ). This component is suitable for demanding applications in motor control, power supplies, and industrial automation.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 780 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 45 nF @ 10 V |
