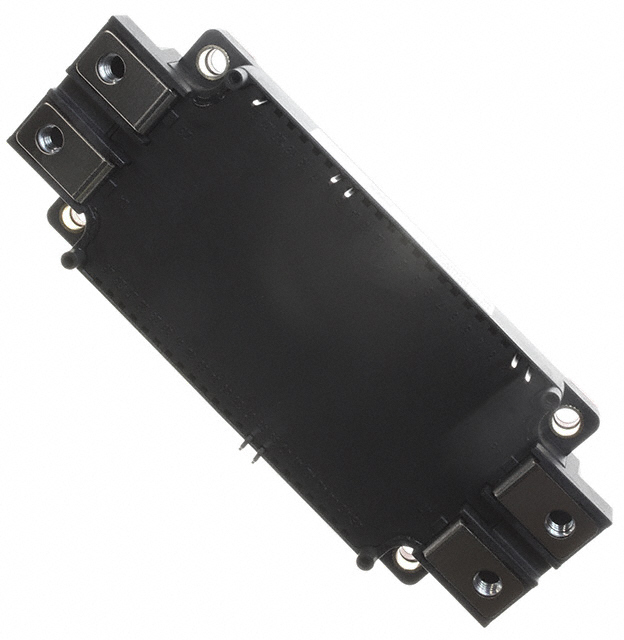

CM300DX-24A

IGBT MOD 1200V 300A 1890W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

The Powerex Inc. CM300DX-24A is a high-performance IGBT module from the IGBTMOD™ series. This half-bridge configuration module features a 1200V collector-emitter breakdown voltage and a maximum collector current of 300A. With a power dissipation rating of 1890W, it is designed for demanding applications requiring efficient power handling. Key electrical specifications include a typical Vce(on) of 2.6V at 15V Vge and 300A Ic, and an input capacitance (Cies) of 47nF @ 10V. The module includes an integrated NTC thermistor for temperature monitoring and operates across a wide temperature range of -40°C to 150°C. Its robust chassis mount package ensures reliable thermal management in industrial power supplies, motor drives, and renewable energy systems.

Additional Information

Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 300A
NTC ThermistorYes
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)300 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max1890 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce47 nF @ 10 V
