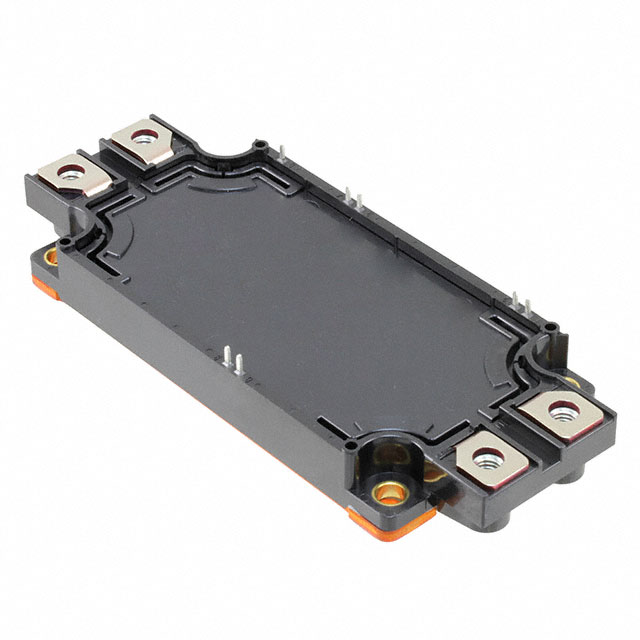

CM225DX-24S1
IGBT MOD 1200V 225A 1250WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBT Module CM225DX-24S1 is a Half Bridge configuration designed for robust power switching applications. This module features a 1200 V collector-emitter breakdown voltage and a continuous collector current rating of 225 A, with a maximum power dissipation of 1250 W. The on-state voltage drop (Vce(on)) is specified at 2.35 V at 15 V gate-emitter voltage and 225 A collector current. Input capacitance (Cies) is 20 nF at 10 V. An integrated NTC thermistor provides temperature monitoring capabilities. The operating temperature range is from -40°C to 150°C (TJ). This component is commonly utilized in industrial motor drives, uninterruptible power supplies (UPS), and power factor correction systems. It is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 225A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 225 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1250 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 20 nF @ 10 V |
