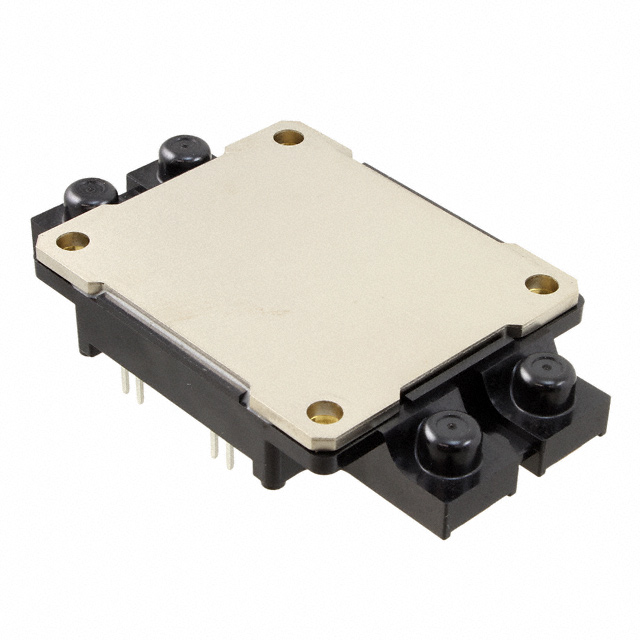

CM200EXS-24S
IGBT MOD 1200V 200A 1500WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
The Powerex Inc. CM200EXS-24S is a single IGBT module designed for high-power applications. This component features a maximum collector-emitter voltage of 1200 V and a continuous collector current capability of 200 A. The module exhibits a low on-state voltage of 2.15 V at 15 V gate-emitter voltage and 200 A collector current, with a maximum power dissipation of 1500 W. It includes an integrated NTC thermistor for thermal monitoring and operates across a temperature range of -40°C to 150°C. The input capacitance (Cies) is rated at 20 nF at 10 V. This module is suitable for use in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 200A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1500 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 20 nF @ 10 V |
