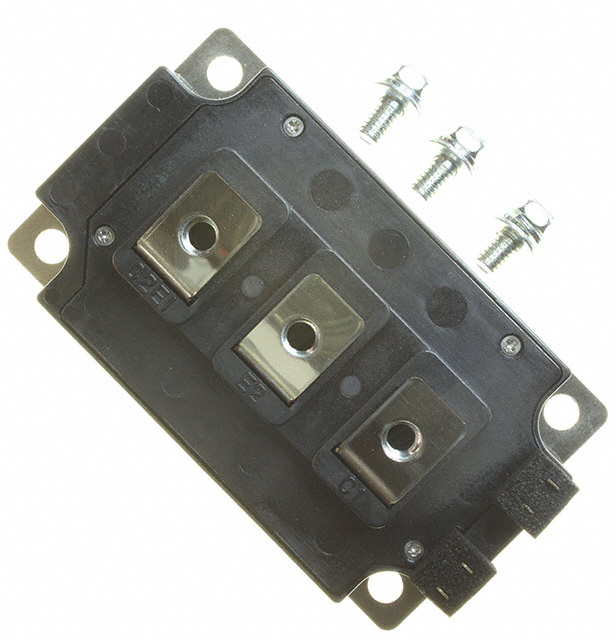

CM200DY-24NF
IGBT MOD 1200V 200A 1130WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Half Bridge 1200 V 200 A 1130 W Chassis Mount Module
Additional Information
Series: IGBTMOD™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1130 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 47 nF @ 10 V |
Request a Quote
Clients Also Buy
CM50DU-24F
IGBT MOD 1200V 50A 320W
CM150DU-12F
IGBT MOD 600V 150A 520W

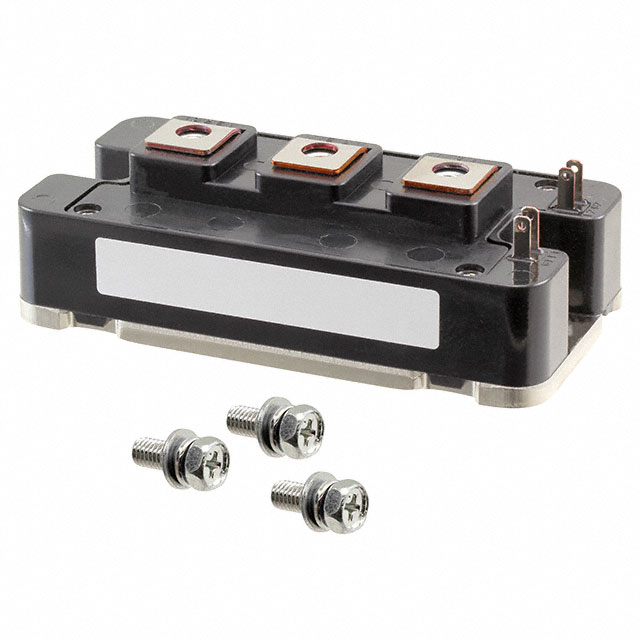

CM100DY-24A
