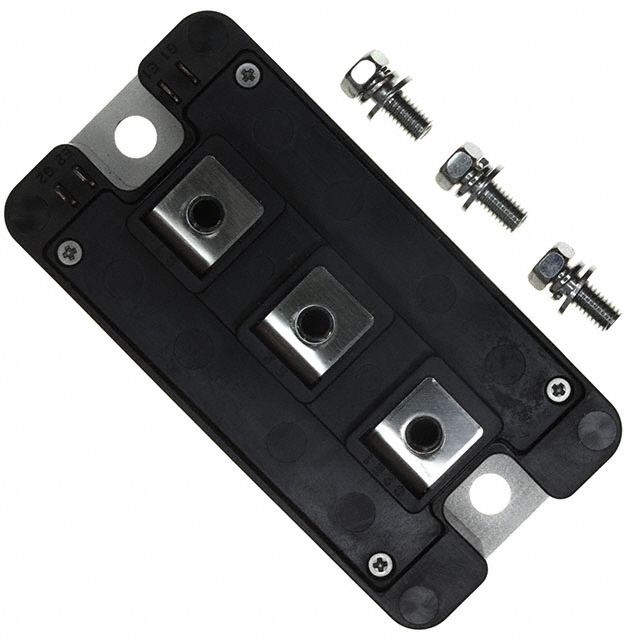

CM200DY-12NF
IGBT MOD 600V 200A 650WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBT module, part number CM200DY-12NF, from the IGBTMOD™ series. This half-bridge module offers a 600V collector-emitter breakdown voltage and a maximum collector current of 200A. Featuring a 650W power dissipation and a low Vce(on) of 2.2V at 15V Vge and 200A Ic, it is designed for demanding applications. The module includes standard input and a Cies of 30 nF at 10V. It operates within a temperature range of -40°C to 150°C (TJ) and utilizes a chassis mount configuration for efficient thermal management. This component is suitable for use in industrial automation, power conversion, and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 650 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 30 nF @ 10 V |
