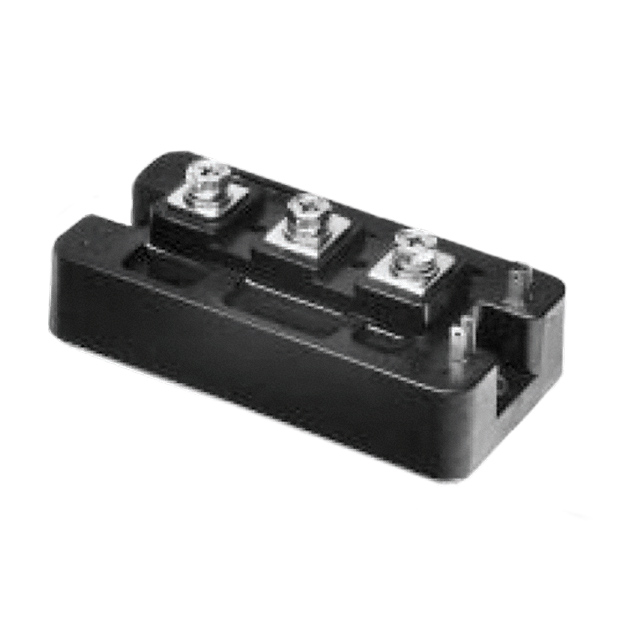

CM200DY-12H
IGBT MOD 600V 200A 780WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
The Powerex Inc. IGBTMOD™ CM200DY-12H is a 600V, 200A half-bridge IGBT module designed for demanding power applications. This chassis mount module offers a maximum power dissipation of 780W and features a Vce(on) of 2.8V at 15V gate-emitter voltage and 200A collector current. With a collector cutoff current of 1mA and an input capacitance of 20 nF @ 10V, it is suitable for high-efficiency power conversion. The operating temperature range is -40°C to 150°C. This component finds application in industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 200A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 200 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 780 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 20 nF @ 10 V |
