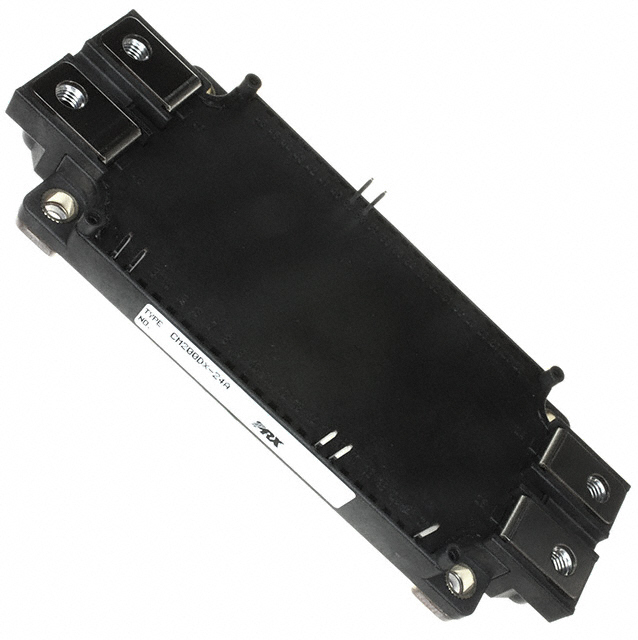

CM200DX-24A

IGBT MOD 1200V 200A 1250W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM200DX-24A is a Half Bridge IGBT module designed for demanding power conversion applications. This chassis mount module features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 200 A. With a power dissipation capability of 1250 W, it is suitable for high-power switching. The module includes an integrated NTC thermistor for temperature monitoring and offers a low on-state voltage (Vce(on)) of 2.6V at 15V gate-emitter voltage and 200A collector current. Input capacitance (Cies) is rated at 35 nF at 10 V. The CM200DX-24A operates across a wide temperature range of -40°C to 150°C (TJ). Typical applications include motor drives, industrial power supplies, and renewable energy systems.

Additional Information

Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 200A
NTC ThermistorYes
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)200 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max1250 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce35 nF @ 10 V
