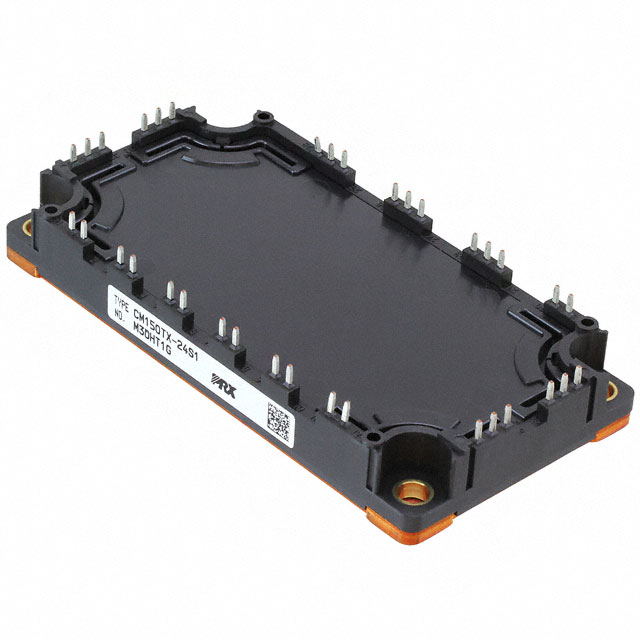

CM150TX-24S1
IGBT MOD 1200V 150A 935WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. CM150TX-24S1 is a high-performance IGBT module designed for demanding industrial applications. This three-level inverter configuration boasts a 1200 V collector-emitter breakdown voltage and a maximum collector current of 150 A. With a power dissipation capability of 935 W, the CM150TX-24S1 is well-suited for power conversion systems, motor drives, and renewable energy inverters. Key electrical specifications include a typical Vce(on) of 2.25 V at 15 V gate voltage and 150 A collector current, and an input capacitance (Cies) of 15 nF at 10 V. The module features an integrated NTC thermistor for temperature monitoring and operates across a wide temperature range of -40°C to 150°C. Packaged in a module for efficient heat dissipation and ease of integration, this component is supplied in trays.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 150A |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 935 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 15 nF @ 10 V |
