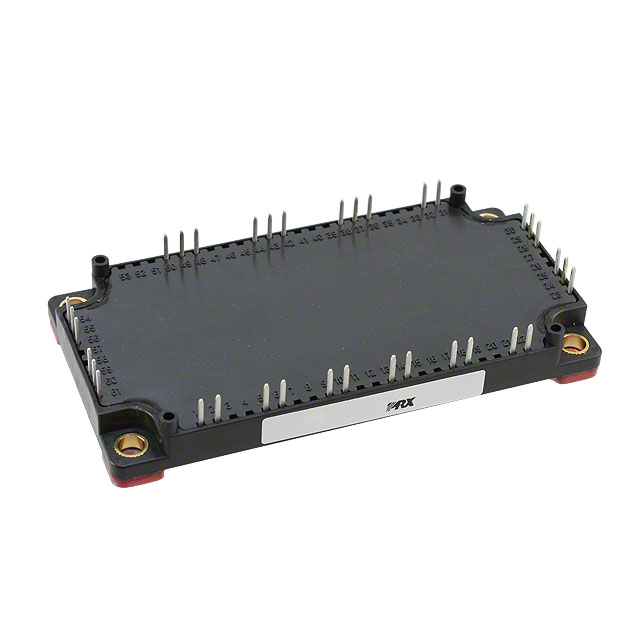

CM150TX-24S

IGBT MOD 1200V 150A 1150W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM150TX-24S is a three-phase inverter IGBT module designed for high-power applications. This chassis mount module offers a robust 1200V collector-emitter breakdown voltage and a 150A continuous collector current (Ic max). With a maximum power dissipation of 1150W, it features a low Vce(on) of 2.15V at 15V gate-emitter voltage and 150A collector current. The module includes an integrated NTC thermistor for temperature monitoring and boasts a low input capacitance (Cies) of 15 nF at 10V. Operating across a wide temperature range of -40°C to 150°C, this Powerex Inc. IGBT module is suitable for industrial automation and power conversion systems.

Additional Information

Series: IGBTMOD™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationThree Phase Inverter
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 150A
NTC ThermistorYes
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)150 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max1150 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce15 nF @ 10 V
