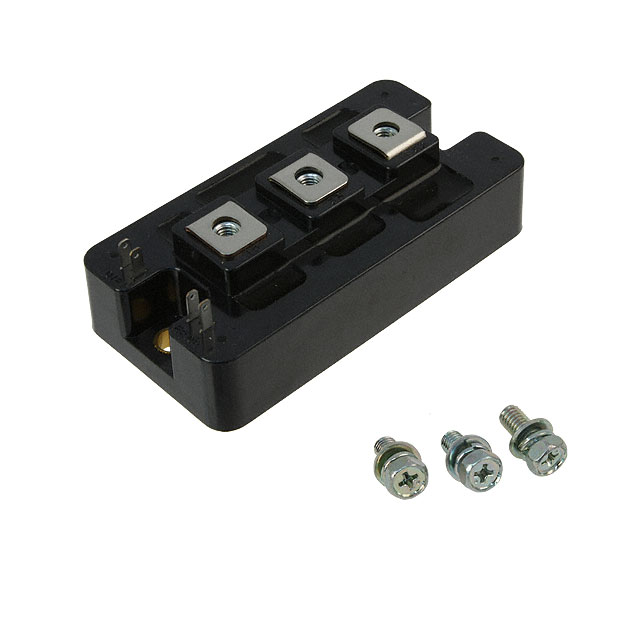

CM150DY-24H

IGBT MOD 1200V 150A 1100W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM150DY-24H is a 1200V, 150A IGBT module featuring a half-bridge configuration. This module delivers 1100W of maximum power and is designed for chassis mounting. Key electrical characteristics include a Vce(on) of 3.4V at 15V Vge and 150A Ic, with a collector current cutoff of 1mA. Input capacitance (Cies) is specified at 30 nF at 10V. Operating temperature ranges from -40°C to 150°C (TJ). This component is suitable for demanding applications in industrial motor drives, renewable energy systems, and power supply units.

Additional Information

Series: IGBTMOD™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 150A
NTC ThermistorNo
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)150 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max1100 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce30 nF @ 10 V
