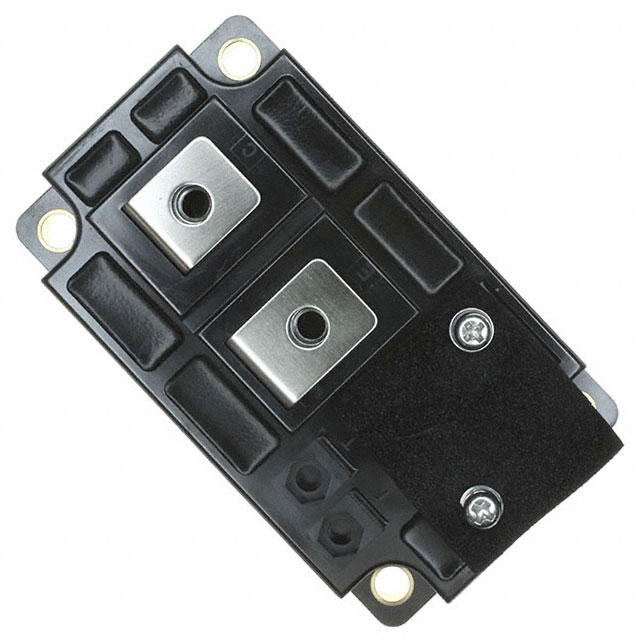

CM150DY-24A
IGBT MOD 1200V 150A 960WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM150DY-24A is a half-bridge IGBT module designed for high-power applications. This module features a 1200 V collector-emitter breakdown voltage and a continuous collector current capability of 150 A, with a maximum power dissipation of 960 W. The Vce(on) is rated at 3 V at 15 V Vge for a 150 A collector current. Input capacitance (Cies) is 23 nF at 10 V. The CM150DY-24A operates across a wide temperature range of -40°C to 150°C. Its chassis mount configuration ensures efficient thermal management. This module is commonly employed in industrial motor drives, uninterruptible power supplies (UPS), and renewable energy systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 960 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 23 nF @ 10 V |
